The LX5 Robo-Sol automatic laser soldering cell is a market leader in capability for laser soldering solutions. Incorporating solder dispensing or wire feed options, automated inspection, alignment and a highly controlled laser system. The LX5 is the ideal platform for laser soldering solutions.


  • Automatic in-line Laser Soldering Cell
  • High precision 30 watt fiber laser
    - complete parameter control
    - camera for easy teaching
    - live soldering inspection
    - Fiducial alignment
  • PC driven with touch screen LCD graphical user interface
  • Fully automated in-line module with SMEMA or standalone operation
  • Soldering routines are easily programmed with the user-friendly touch screen

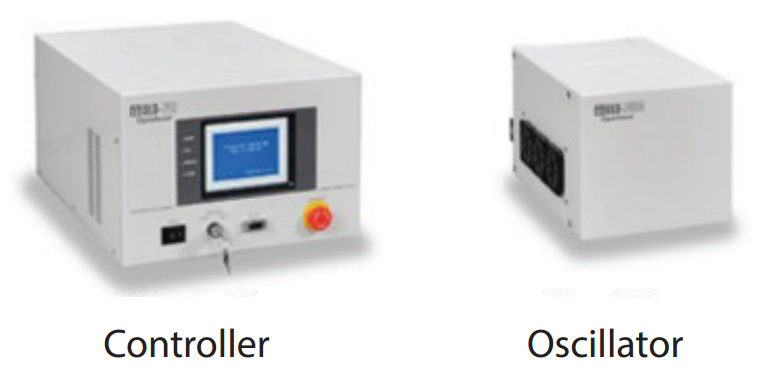

Laser Head

The system uses a 30W Fibre Laser, with integrated CCD camera which can be used for point teaching and for displaying the live soldering process on the monitor. Due to the compact soldering of minute devices can be achieved

Clean Cut Feeder

A solder wire clean-cut feeder can be added to the laser head. The patented clean cut technology notches the solder wire as it is fed through the wire feeder, this signicantly reduces ux spatter and solder balls.

Solder Paste Dispense

A High-Precision dispenser with superb dispensing stability, can be incorporated into the cell. The system is fully digital controlled with visualization of dispensing conditions providing stability in pressure and operation without compromise.


  • Solder wire feed
  • Solder paste dispense
  • Customised MES communication
  • Fume extraction & filtration system
  • Board support


Number Of Axis 4
Dimensions L 1560, D 1650, H 900
Weight 1,200kg
Power 3 phase 400V 9KVA
Air 6 Bar
Exhaust See Options
Max PCB Size 480mm x 480mm
Max Solder Area 450mm x 450mm
PCB Clearance 50mm Top and Bottom
Conveyor SMEMA

Live View
